Automatic Voltage Changing LED Tester

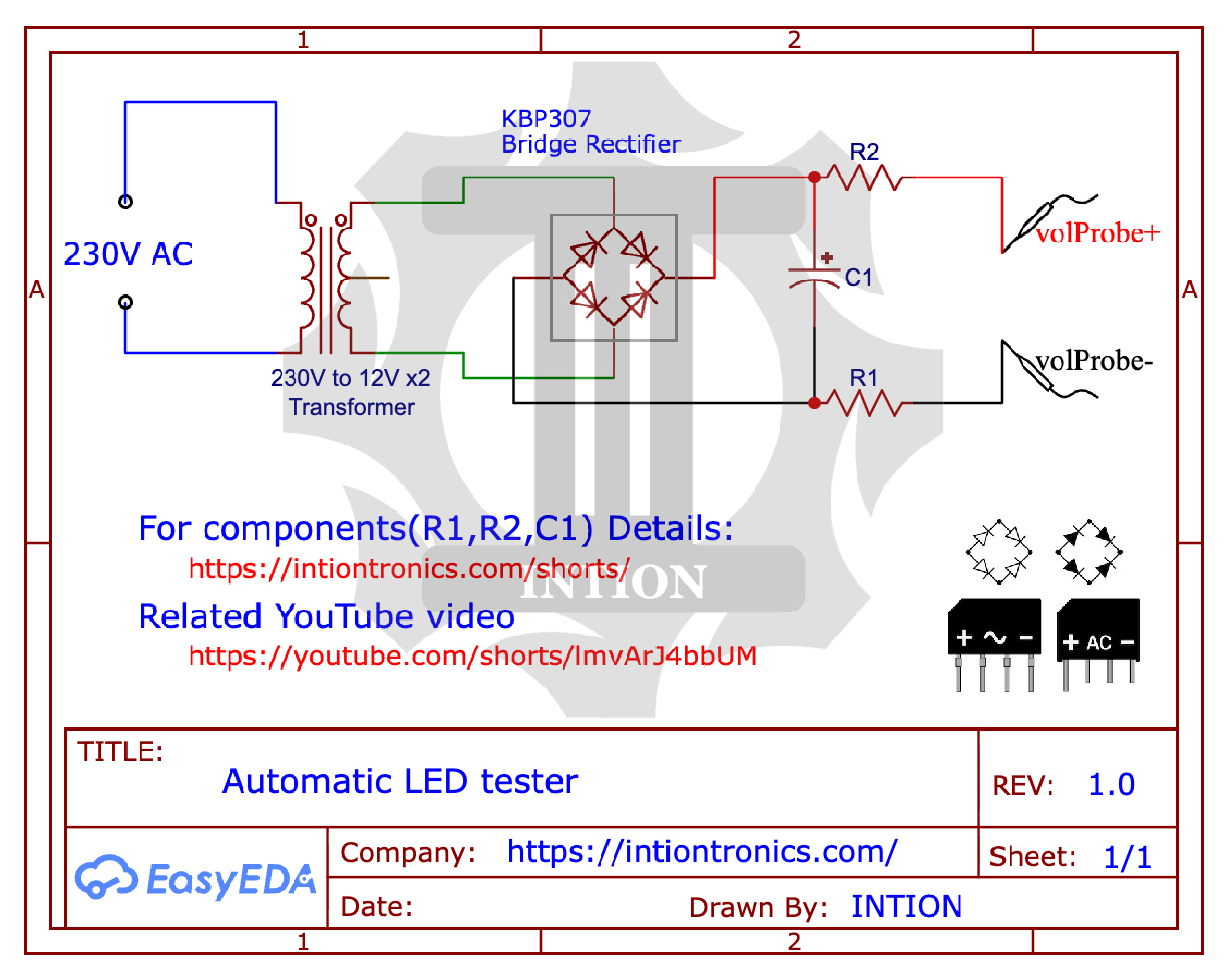

Circuit Diagram

Download in full quality Download

Scroll down to the bottom of this page for the component list 👇👇

Component list

230V to 12V x2 300mA Transformer
R1,R2 : 330 Ohms 2W
C1 : 2200uF 50V
KBP307 bridge rectifier
Multimeter Probes

YouTube Video : Watch

automatic led tester Automatic multi-Voltage LED tester led tester
